GRP Re-Grid Open Mesh Grating

The Re-Grid Open Mesh GRP Grating can be easily installed. Due to the bi-directional strength of Re-Grid, end banding and additional support around pipe opes can be eliminated. Furthermore, fabrication can be carried out on site without affecting the corrosive resistance properties of our fibreglass grating.

Mini Mesh Grating

We further offer a series of Mini Mesh Grating & Micro Mesh Re-Grid products.

Mini Mesh Grating includes two mesh sizes: 25mm & 19mm.

The Mini Mesh have been designed to prevent small objects falling through the grating.

Learn more about Relinea products by downloading one of our brochures

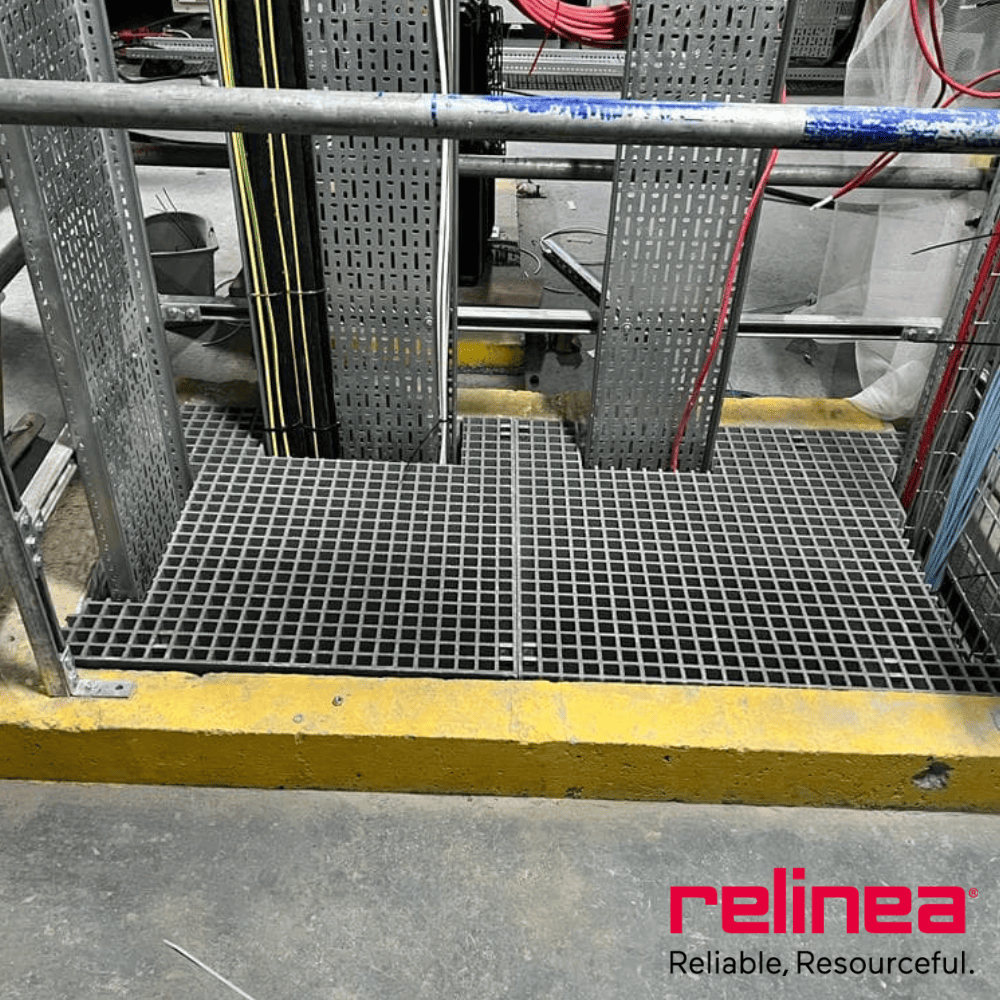

Re-Grid GRP Grating is designed to provide safe, robust GRP Open Mesh Flooring Access for pedestrians on industrial walkways, catwalks, and over channels. With a number of GRP Grating Mesh sizes, we can accommodate applications from industrial water treatment works, to pedestrian areas that require public access.

The square mesh structure of the Re-Grid GRP grating provides bi-directional strength, surpassing the uni-directional characteristics of steel metal gratings.

Relinea’s Re-Grid Fibreglass Grating is manufactured using an Embedded Grit finish, meaning that the Anti-Slip Grit is embedded onto the top surface of the grating during the manufacturing process, forming an integral bond between the grit and the surface of the grating. This ensures that the anti-slip grit does not chip or peel away from the grating and further does not compromise the slip resistance or resilience of the Re-Grid.

Re-Grid GRP Grating is 1/3rd the weight of equivalent steel grating.

Relinea’s GRP Fibreglass Grating products are available in a range of resins, (including phenolic resin with extreme fire resistance) to meet specific environmental demands, including hazardous chemical applications. In addition there are a range of surface finishes including meniscus, grit and smooth to meet even the most stringent requirements in terms of slip resistance and ease of cleaning.

Type	Depth (mm)	Mesh Size (mm)	Standard Panel Size (mm)	Open Area %	Approx Weight (kg/m²)	Standard Surface	Standard Colours
Re-Grid 1550	15	50 x 50	3660 x 1220	78	5.9	Meniscus	Light Grey
Re-Grid 2538	25	38 x 38	3000 x 1000 3660 x 1220	70	13.5	Meniscus, Grit	Light Grey
Re-Grid 3038	30	38 x 38	3000 x 1000 4038 x 1000 3660 x 1220	70	15.5	Meniscus, Grit	Light Grey, Charcoal Grey
Re-Grid 3838	38	38 x 38	3000 x 1000 4038 x 1000 3660 x 1220	70	18.5	Meniscus, Grit	Light Grey, Charcoal
Re-Grid 5050	50	50 x 50	3660 x 1220	78	21.2	Grit	Light Grey
MINI Re-Grid 1420	14	20 x 20	4047 x 1247	42	10.5	Grit	Light Grey
MINI Re-Grid 2220	22	20 x 20	4047 x 1527	42	14.8	Grit	Light Grey
MINI Re-Grid 3820	38	20 x 20	4047 x 1247	42	21	Grit	Light Grey
MINI Re-Grid 3826	38	26 x 26	3027 x 997	60	19.5	Grit	Light Grey
MICRO Re-Grid 3013	30	13 x 13	4047 x 1007	30	19.1	Meniscus	Light Grey

*Other colours, surface finishes and the full range of resin systems are available upon request. Please note if a grit finish is required please add approximately 2 mm to the nominal depth.

Re-tread

Relinea also offer GRP Stair Tread Grating that are a step forward in efficient stair design. The open mesh stair treads are available in our full range of grating depths and mesh sizes, and feature a high visibility anti-slip nosing. Furthermore, we can provide composite GRP support angles for fixing to stringers.

Re-Grid Fixings

Relinea offers a range of fixings to fasten GRP grating panels together and to support structures. All fixings are manufactured in 316 stainless steel as standard.

Elevated Flooring Using Pedestals

Relinea supply a range of adjustable pedestals that can provide elevation to flooring from 38 to 600 mm.

Grating Ramps

Available to match all grating types Relinea can offer a range of GRP Grating Ramps which fix to our standard products using C clips. This system provides a safe means of access to our GRP Grating System, preventing trips, and permitting trolleys etc to be easily manoeuvred.

Key Benefits

Corrosion & Chemical Resistant

Slip Resistant

Impact Resistant

Maintenance Free

Ease of Installation

Related Case Studies

The Hall of Cornwall Theatre, Truro.

Bellenden Road Underbridge

Silwood Train Depot

Re-Deck – Covered Fibreglass Grating

The Re-Deck GRP Covered Grating System is a moulded one piece GRP Fibreglass Grating Flooring Product that combines our GRP Re-Plate with our Re-Grid Open Mesh Grating. The resulting product is even stronger than our standard Re-Grid Open Mesh Flooring.
